kubernetes+harbor实践之搭建无状态服务nginx-php环境

看这个文章之前，如果没有接触过k8s的同学，建议先简单了解一些k8s的基本概念。kubernetes官网，开始之前，先列一下我自己本地搭建环境的一些清单吧，因为不是生产环境，只能用vagrant+vm创建虚拟机器，打造所需的集群环境，详见：

名称	IP	配置	备注
k8s master节点	192.168.1.103	系统：centos、内存：2G、 CPU核数：2	master节点至少需要的最低配置，不然运行会很卡，而且CPU低于2的话是启动不起来的
k8s node节点	192.168.1.104	系统：centos、内存：512M、 CPU核数：1
harbor服务	192.168.1.108	系统：centos、内存：512M、 CPU核数：1

用docker创建nginx-php镜像

请参考网上文章：https://www.cnblogs.com/tu6ge/p/8041437.html

安装harbor镜像仓库

请参考往期教程【harbor的简单应用】或其他网上教程

安装kubeadm集群

请参考往期教程【利用kubeadm搭建kubernetes集群】或其他网上教程

在k8s node节点配置docker私有仓库，也就是我们部署的harbor服务地址。

vim /etc/docker/daemon.json
{
  "insecure-registries":["http://harbor.cn"],
}
systemctl daemon-reload
systemctl resatrt docker

准备好需要configMap.yaml文件,文件配置如下：

• nginx的配置文件nginx-php-nginxconfigmap.yaml（映射在pod容器中的/usr/local/nginx/conf/conf.d），如下

apiVersion: v1
kind: ConfigMap
metadata:
    name: nginx-php-nginxconfig
data:
    www.conf: |
        server {
            listen       80;
            server_name  nginx.test.com;
            root   /usr/share/nginx/html;
            access_log  /usr/local/nginx/logs/host_access.log;
            error_log  /usr/local/nginx/logs/host_error.log debug;
            location / {
            root   /usr/share/nginx/html;
            index  index.html index.htm index.php;
            }
            error_page   500 502 503 504  /50x.html;
            location = /50x.html {
            root   /usr/share/nginx/html;
            }

            location ~ \.php$ {
              fastcgi_pass   0.0.0.0:9000;
              fastcgi_index  index.php;
              fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;
              include        fastcgi_params;
             }
            }

• php-fpm的配置文件nginx-php-php-fpm-wwwconfig-configmap.yaml（映射在pod容器中的/usr/local/php/etc/php-fpm.d），如下：

apiVersion: v1
kind: ConfigMap
metadata:
    name: nginx-php-php-fpm-wwwconfig
data:
    www.conf: |
           [www]
           user = www
           group = www
           listen = 0.0.0.0:9000
           pm = dynamic
           pm.max_children = 30
           pm.start_servers = 2
           pm.min_spare_servers = 1
           pm.max_spare_servers = 20
           ;access.log = log/$pool.access.log
           ;slowlog = log/$pool.log.slow

创建configMap:

kubectl apply -f nginx-php-nginxconfigmap.yaml
kubectl apply -f nginx-php-php-fpm-wwwconfig-configmap.yaml

准备好需要部署的deloyment.yaml文件配置nginx-php-deployment.yaml，如下：

apiVersion: apps/v1
kind: Deployment
metadata:
    name: nginx-php-deployment
spec:
    selector:
        matchLabels:
            app: nginx-php
    replicas: 1
    template:
        metadata:
            labels:
                app: nginx-php
        spec:
            containers:
                - name: nginx-php
                  image: tanjj.harbor.com/nginx-php/nginx-php-v1:v1
                  ports:
                      - containerPort: 80
                      - containerPort: 9000
                  volumeMounts:
                      - name: nginx-php-nginxconfig
                        mountPath: /usr/local/nginx/conf/conf.d
                      - name: web-root
                        mountPath: /usr/share/nginx/html
                      - name: nginx-log
                        mountPath: /usr/local/nginx/logs
                      - name: nginx-php-php-fpm-wwwconfig
                        mountPath: /usr/local/php/etc/php-fpm.d
            volumes:
                - name: nginx-php-nginxconfig
                  configMap:
                      name: nginx-php-nginxconfig
                - name: web-root
                  hostPath:
                      path: /var/data/nginx-php
                - name: nginx-log
                  hostPath:
                      path: /var/log/nginx-php
                - name: nginx-php-php-fpm-wwwconfig
                  configMap:
                      name: nginx-php-php-fpm-wwwconfig

启动deployment

kubectl apply -f nginx-php-deployment.yaml

查看是否启动成功：

kubectl get pods

NAME                                   READY   STATUS    RESTARTS   AGE
nginx-php-deployment-f97dd787d-mdfr5   1/1     Running   0          56m

准备好需要service.yaml文件nginx-php-service.yaml,如下：

apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx-php
  name: nginx-php
spec:
  ports:
  - name: 80-80
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx-php
  type: NodePort
status:
  loadBalancer: {}

启动nginx-php服务，这次我们是以NodePort类型的服务启动。

kubectl apply -f nginx-php-service.yaml

查看服务是否启动成功：

kubectl get svc

NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP        5h28m
nginx-php    NodePort    10.96.101.213   <none>        80:31185/TCP   148m

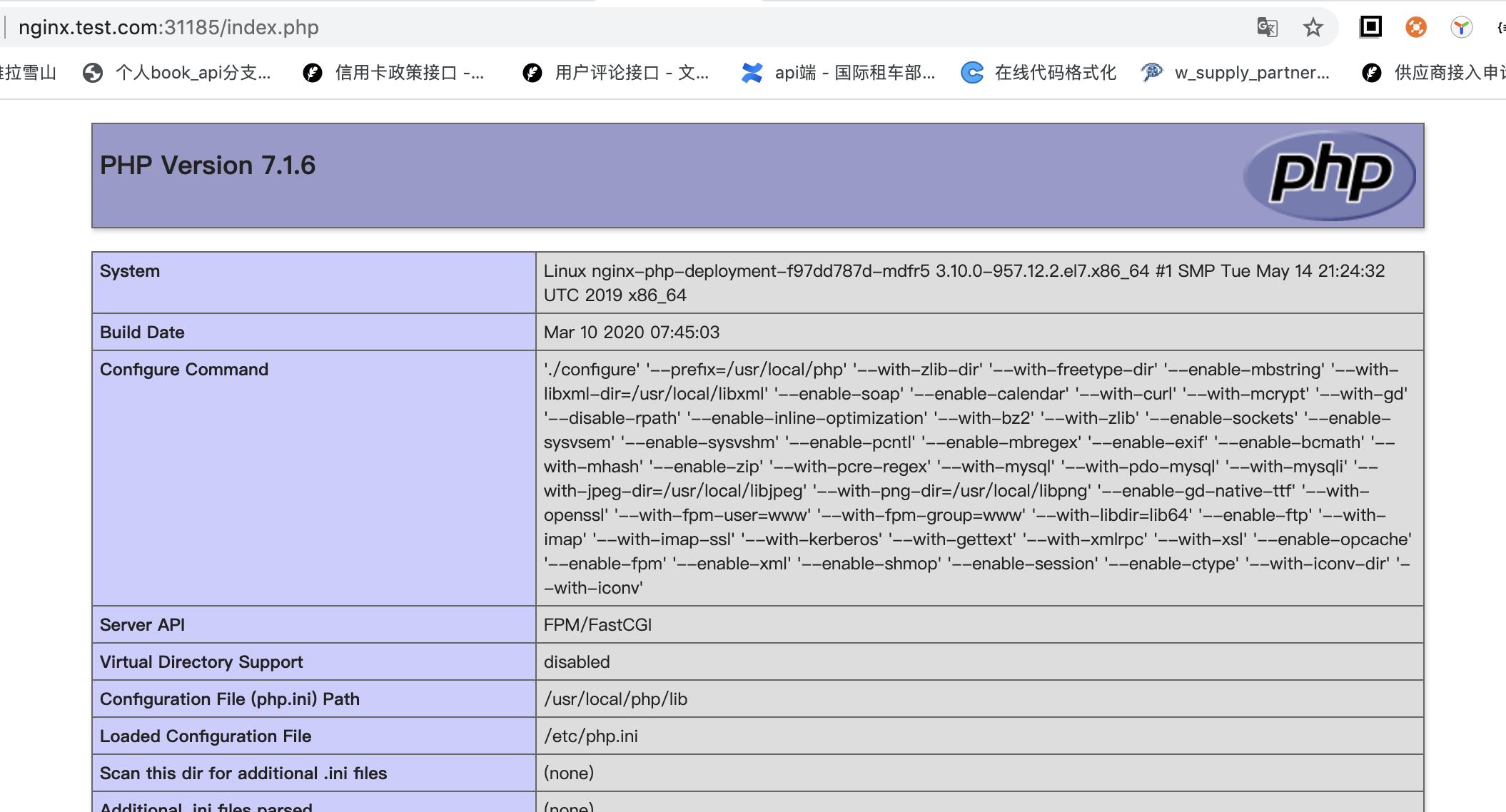

当服务启动成功后,我们可以用k8s node节点IP + 暴露服务的NodePort端口访问，这里的地址是：192.168.1.104:31185。访问结果如图：
